Construction

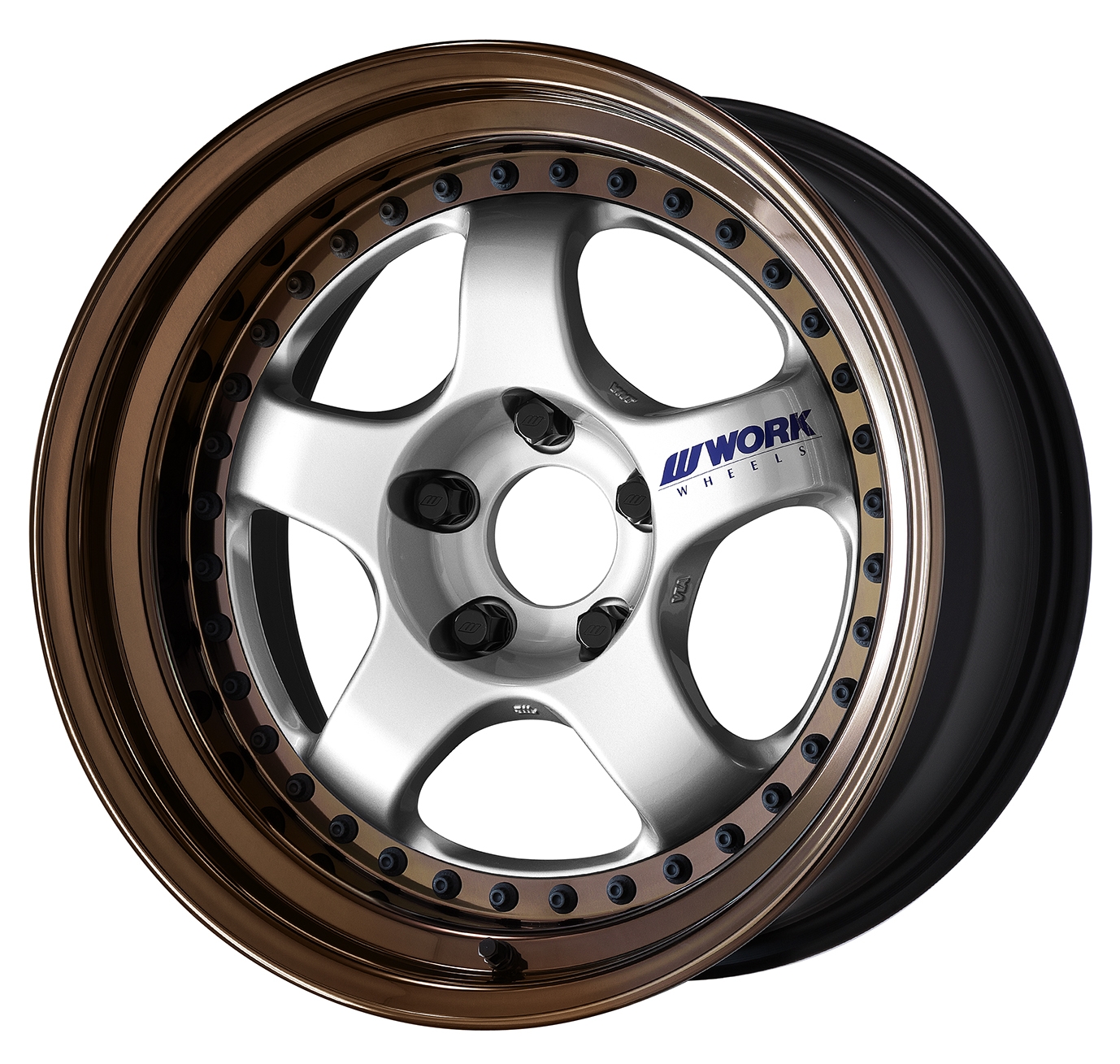

3 piece construction
Constructions
A 3 layered unit, consisting of the disc centering the outer barrel and inner barrel held together with pierce bolts.
Advantages
Outer barrel, inner barrel, and disc face is constructed with different materials and manufacturing processes, giving it flexibility and excellence in its functions and designs.
Specification
Sizing
16", 17", 18", 19", 20"
16 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD:
4H-100 [W disk only]
4H-100 to 114.3, 5H-100 to 114.3 [A & O disk only]

Width: 16 X 5.0 to 16 X 11.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・W disk - Small brake clearance with deep rim

Offset: Download PDF chart above to see options.
17 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD:
4H-98 to 114.3, 5H-98 to 114.3 [A disk only]
4H-98 to 114.3, 5H-98 to 120.65 [O & W disk only]

Width: 17 X 7.0 to 17 X 13.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・W disk - Small brake clearance with deep rim

Offset: Download PDF chart above to see options.
18 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD:
4H-98 to 114.3, 5H-98 to 120.65 [A disk only]
4H-98 to 114.3, 5H-98 to 130 [O disk only]
5H-98 to 120.65 [L & R disk only]

Width: 18 X 7.0 to 18 X 16.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・L disk - Big caliper brake clearance
・R disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
19 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD:
5H-98 to 120.65 [A disk only]
5H-98 to 130 [O disk only]
5H-98 to 120.65 [L disk only]
5H-98 to 120 [R disk only]
5H-98 to 114.3 [T disk only]

Width: 19 X 8.0 to 19 X 16.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・L disk - Big caliper brake clearance
・R disk - Big caliper brake clearance
・T disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
20 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD:
5H-98 to 120.65 [A, L & R disk only]
5H-98 to 130 [O disk only]

Width: 20 X 8.0 to 20 X 13.0

Disk Type:
・A disk - Standard brake clearance
・O disk - Small brake clearance with deep rim
・L disk - Big caliper brake clearance
・R disk - Big caliper brake clearance

Offset: Download PDF chart above to see options.
Center Disk colour options
Standard:
・White [WHT]
・Gold [GLD]
・Platinum Gold [PG]
・AHG2 Bronze [AHG2]
・Hyper Gold [HPG]
・Light Gray Silver [LGS]
・Matt Silver [MSL]
・Gloss Silver [SIL]
・Matt Gunmetal [MGM]
・Gloss Gunmetal [GM]
・Matt Black [MBL]
・Gloss Black [BLK]

Premium:
・Buffed polished [BBF / PP]

Premium [Asterism]:
・Black Asterism [ARK] - 19 inch only
・Red Asterism [ARR] - 19 inch only

Premium [Colorism]:
・Cassis Haze [CHP]
・Energy Lime Green [ELG]
・Energy Mint [EMB]
・Hornet Yellow [UY]
・Mandarin Alert [MAO]
Barrel [rim] colour options
Standard:
・Anodized inner rim with Polished anodized outer rim

Premium:
・Anodized inner rim with Brushed anodized outer rim
・Black anodized inner rim with Gloss Bronze anodized outer rim
・Black anodized inner rim with Matt Bronze anodized outer rim
・Black anodized inner rim with Gloss Black anodized outer rim
・Black anodized inner rim with Matt Black anodized outer rim
Pierce bolt [rivet] colour options
Standard:

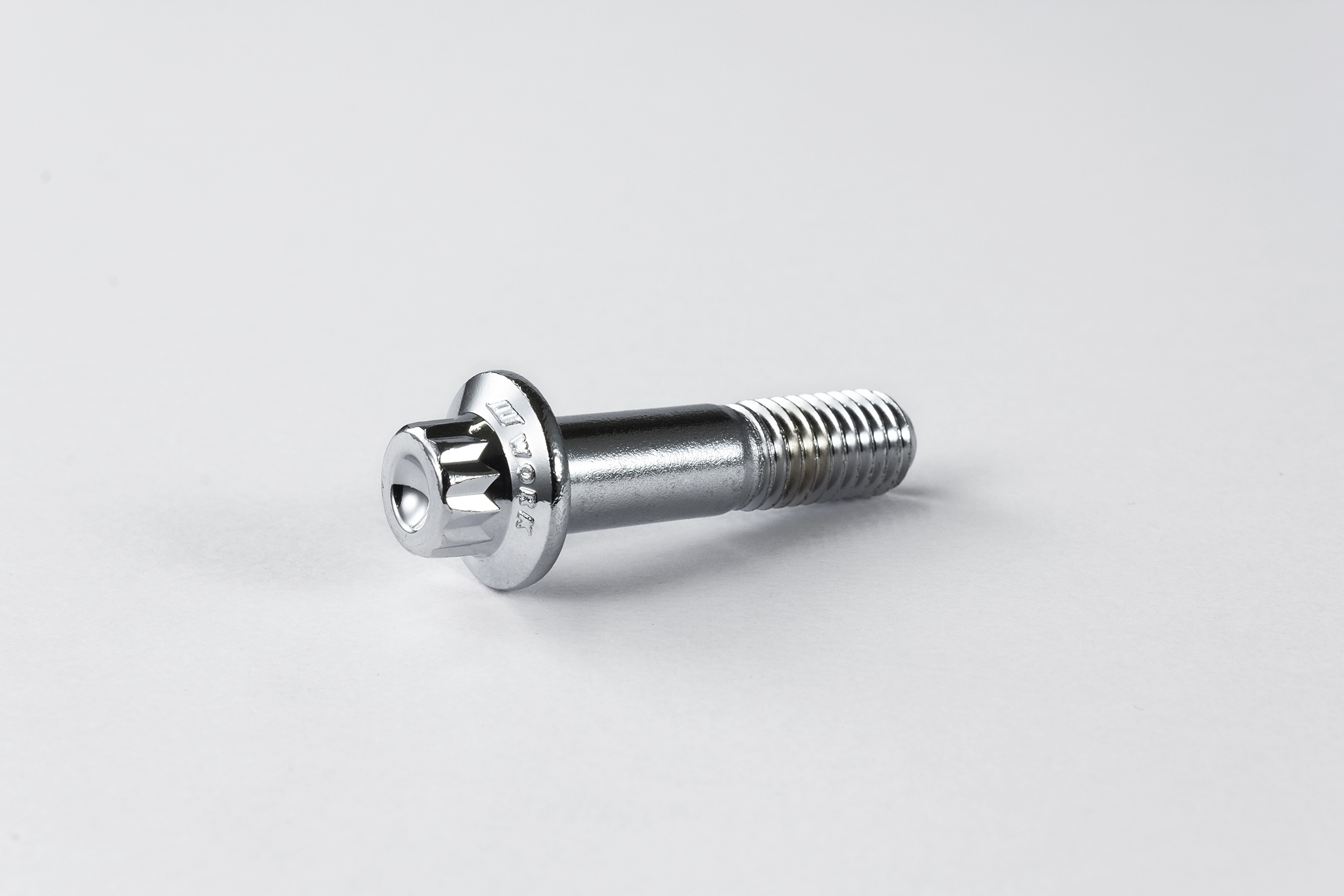

・Chrome

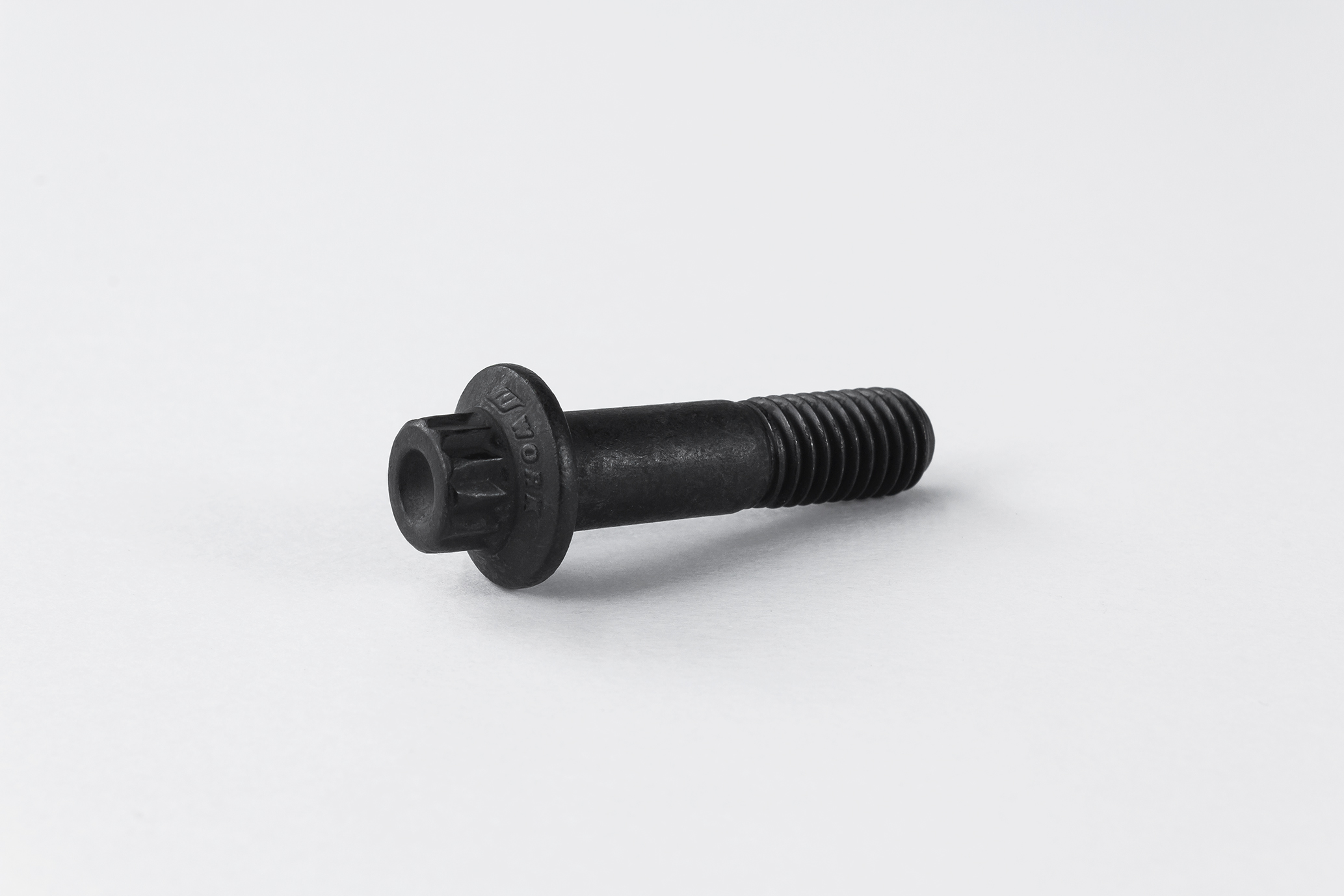

・Black

Premium:
・Gold

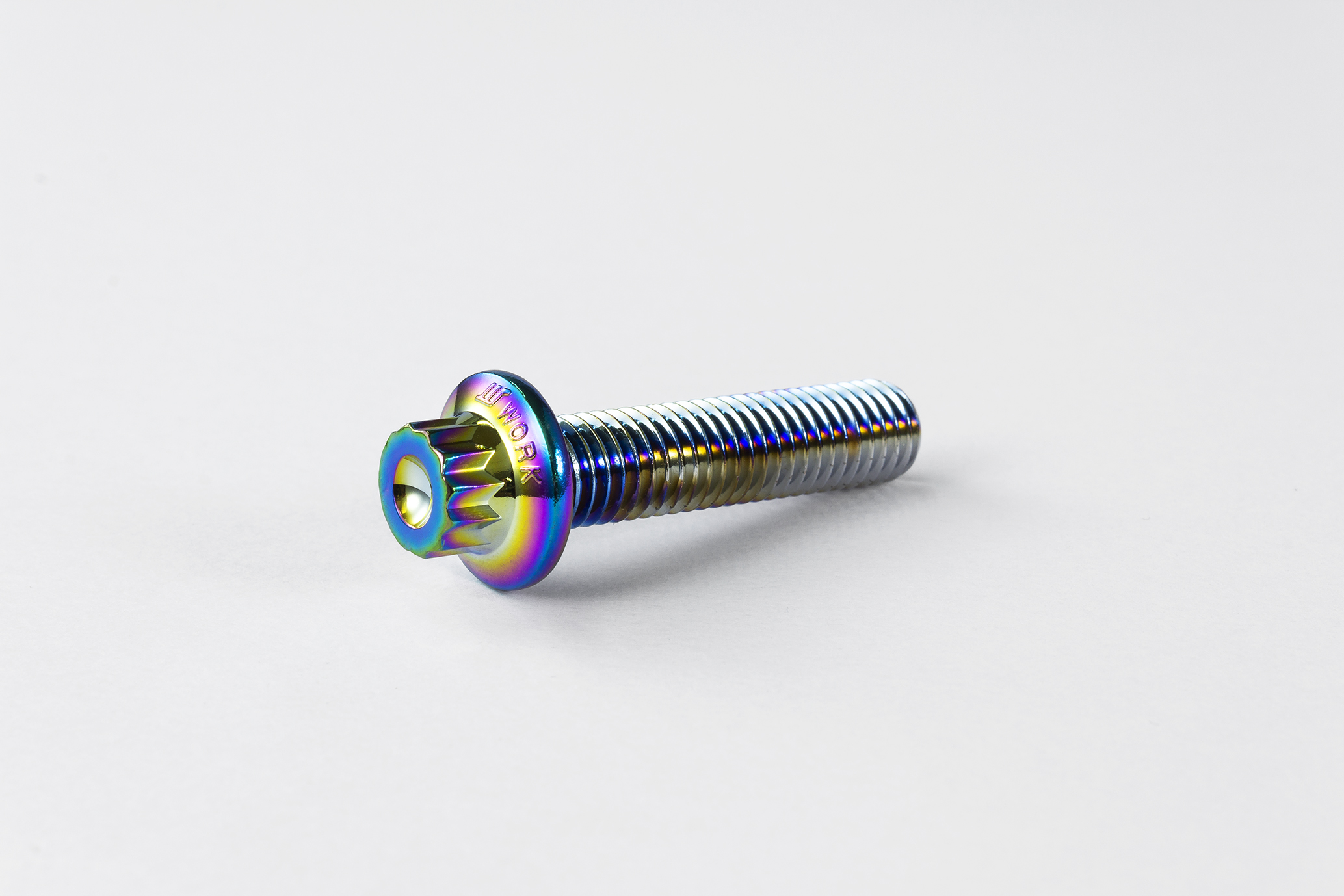

・Titan
Included with each wheel
1 X Air Valve
1 X Decal

Center cap is not available by default from Work Japan as S13P is not designed to hold any center cap.
IMPORTANT NOTICE
It is the buyer's responsibility to ensure that the wheels fit the car and thorough research is strongly recommended. Brake clearance varies with each spec, pleace contact us if in doubt.
Optional items
Outer rim / lip colour options
POLISHED ANODIZED
BRUSHED ANODIZED
GLOSS BLACK ANODIZED
MATT BLACK ANODIZED
GLOSS BRONZE ANODIZED
MATT BRONZE ANODIZED
Center disk colour options
WHITE [WHT]
GOLD [GLD]
PLATINUM GOLD [PG]
HYPER GOLD [HPG]
AHG2 BRONZE [AHG2]
LIGHT GRAY SILVER [LGS]
GLOSS SILVER [SIL]
MATT SILVER [MSL]
GLOSS GUNMETAL [GM]
MATT GUNMETAL [MGM]
MATT BLACK [MBL]
GLOSS BLACK [BLK]
Wheels valves options
BLACK [V29K]
SILVER [V29A]
